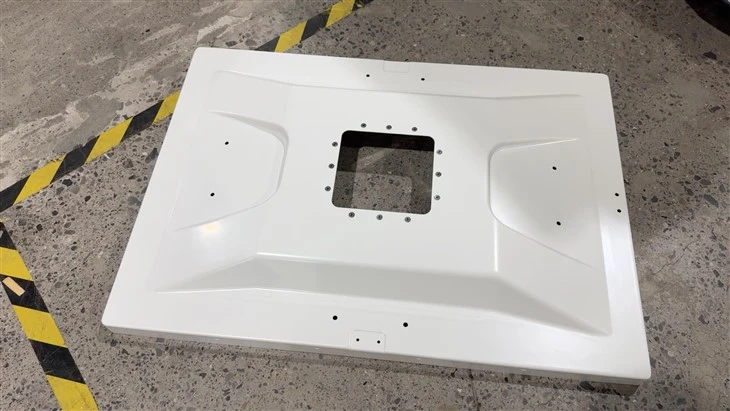

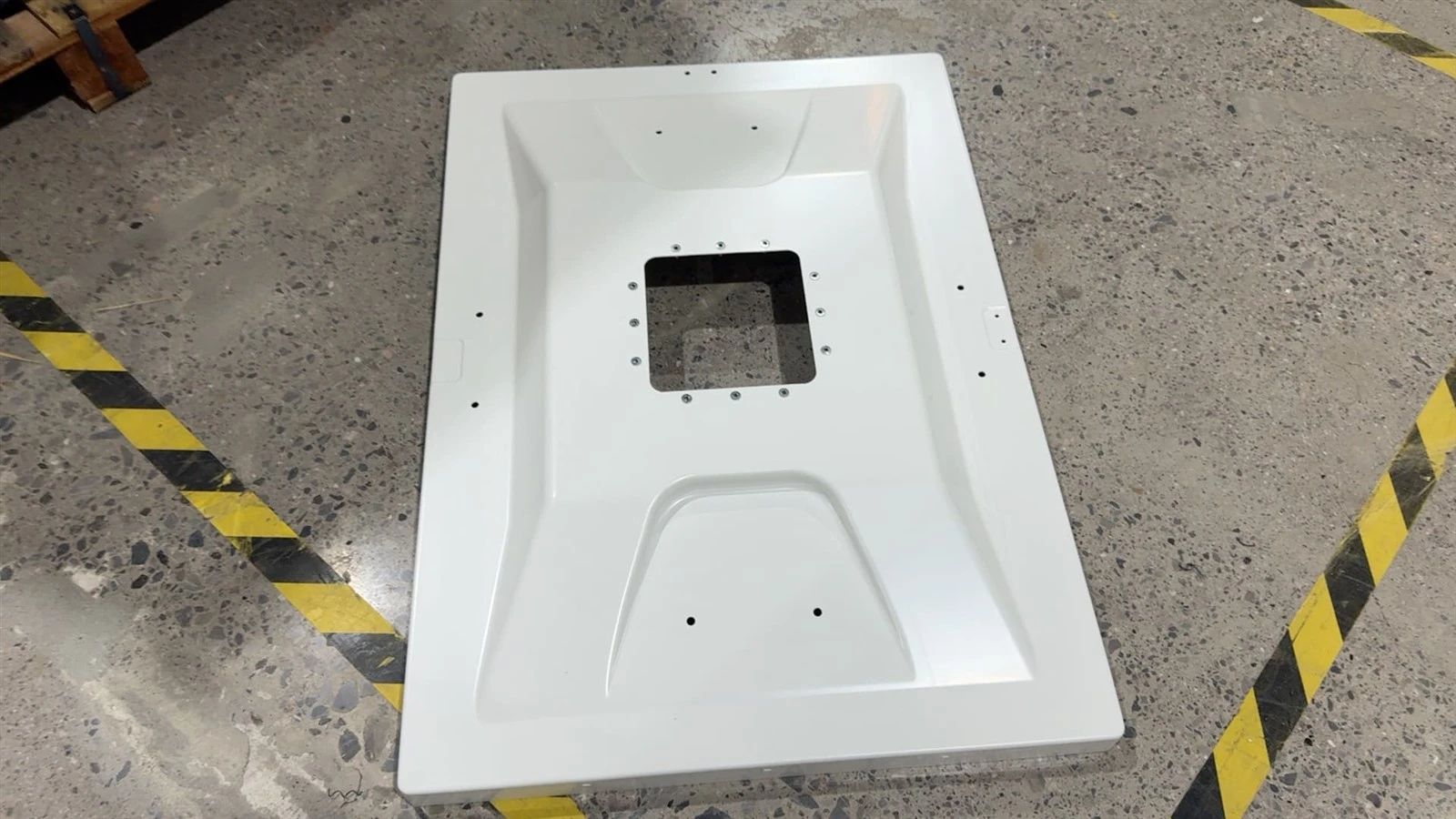

This product is designed for high‑end equipment with strict requirements for visual texture. Made from high‑gloss grade ABS sheet and formed via Vacuum Forming using a mirror‑finished mold, the housing achieves a high‑gloss mirror effect without secondary painting, with gloss level exceeding 85 degrees.
High‑Gloss Mirror, Elegant & Eye‑Catching
The mold is precision‑polished to a mirror level. The formed housing surface is smooth and flat, reflecting light clearly and delivering a piano‑like visual effect. The glossy surface makes the device appear refined and premium in showrooms, exhibition halls, or home environments.
Wear & Scratch Resistant, Long‑Lasting Luster
ABS surface hardness is optimized, and a hard coating option (pencil hardness ≥2H) is available to resist daily wiping and minor scratches. The material is inherently anti‑yellowing, maintaining its color over long‑term use.
Functional Integration, Design Freedom
The housing can integrally mold display windows, touch button areas, ventilation holes, and mounting clips. Reinforcing ribs and screw bosses can be added on the back to prevent large panels from warping. Contrasting gloss and matte areas can be achieved via mold texture differences.
Custom Colors, Brand Matching
Beyond high‑gloss black, custom colors such as high‑gloss white, silver gray, and champagne gold (RAL/Pantone) are available to meet brand identity requirements. Partial screen printing or UV transfer patterns can also be applied.
Application Areas:
- Smart speakers, smart home control panels
- Beauty devices, massage equipment housings
- Medical monitors (premium series)
- Self‑service kiosks, advertising display bezels
Home appliance control panels
Professional Advantages
With deep expertise in thermoforming of polymer materials, our company possesses comprehensive R&D and application experience across a full range of materials, including PP, PS, PC, PVC, ABS, PET, and specialized composites such as ABS+ASA (weather-resistant and anti-aging), ABS+PMMA (high light transmittance), and ABS+TPU (abrasion-resistant and impact-proof). We tailor material solutions to meet diverse requirements for mechanical strength, temperature resistance (-40°C to 120°C), and environmental compliance. Leveraging advanced thermoforming technologies (precision temperature control ±2°C, vacuum adsorption molding), we deliver high-precision, flawless solutions for equipment covers, medical device housings (100,000-class cleanliness standards), precision beauty device components, high-strength forklift plastic parts, lightweight automotive/RV components, and custom pallets.
Client Validation
Trusted by over 30 global Fortune 500 companies, we collaborate on benchmark projects in automotive, medical, and industrial equipment sectors. From material selection (0.5-15mm thickness optimization) and structural design to mass production, we provide data-driven process validation to ensure compliance with ISO, FDA, and industry-specific standards. Expertise Empowering Manufacturing, Quality Defining Reliability - Partner with us for cost-efficient, sustainable growth!
Material suggestion
Characteristic Material | Strength | Clear | Price | Application |
| ABS | Good-High impact | Not Avaliable | Medium | Caravan parts,vehicular parts, Electrical / Equipment Enclosures |
| Acrylic/Pmma | Medium to high strength | Yes | Medium | Signs, light cover,domes, light diffusers |
| PS | Medium to good strength | Yes(clarity not to quality of PETG/PC/PMMA) | Medium | Packaging, microgreens tray |
| PC | Very good impact strength | Yes | Expensive | Machine guard, Cover, enclosure, light cover |
| PP | Soft | Translucent | Inexpensive | Packing tray,containers,tank,enclosure, medical application |
| HDPE | Soft | Translucent | Inexpensive | Enclosure, Vehicular parts |
| PVC | Good | Yes | Inexpensive | Packaging, machine guard, car trim |
| PETG | Good-High Impact | Yes | Expensive | Medical application |
Other products
Vacuum-Formed Equipment Housing Solutions
Custom-engineered enclosures with integrated bonding interfaces
±0.15mm dimensional tolerance for precision assembly
EMI/RFI shielding optional (ASTM D4935 compliant)
Flame-Retardant Battery Enclosures
UL94 V-0 certified ABS/PP compound options
IP67 sealing compatibility for EV/ESS applications
Thermal management grooves design (max. 85℃ continuous operation)
Medical Aesthetic Device Housings
Class B surface finish (Ra≤0.8μm) with textured options
Low-tooling-cost design for small batches (MOQ 500pcs)
Integrated threaded inserts (M3-M12) for medical device assembly
UV-Stabilized Drone Components
PMMA/ASA composite with 5% carbon black masterbatch
IP65-rated structural shells for outdoor UAVs
Anti-yellowing guarantee (>2000hrs QUV accelerated testing)
Automotive Structural Components
Class-A surface interior trims (VDA 19.2 cleanliness standard)
High-impact ABS/PC composites for exterior applications
In-mold decoration (IMD) capability for 3D contours
Industrial-Grade Forklift Armor
ABS substrate with laminated PVC leather (≥2mm thickness)
360° impact protection (ASTM D256 Izod 15kJ/m²)
Anti-slip surface texture (coefficient of friction >0.8 DIN 51130)
ESD-Safe Thermoformed Trays
Conductive/static-dissipative compounds (surface resistance 10^4-10^11Ω)
Nesting design with ±0.3mm cavity precision (IEC 61340-5-1 compliant)
Automated handling compatible (JEDEC tray standards)
Process
We have a rich-experience design group to help you customize tray with your products size, you just need to send us drawings
After confirm the order, samples need 7-14 days to produce for your check,2 samples are free
After confirmation of samples, finish time depend on the order quantity.
If you have forwarder, please send the contact information, and then we will contact to ship the products, if you do not have, please don't worry, we will find for you
If you have any problems, after receiving mass products, please contact the sales anytime, we will solve for you
